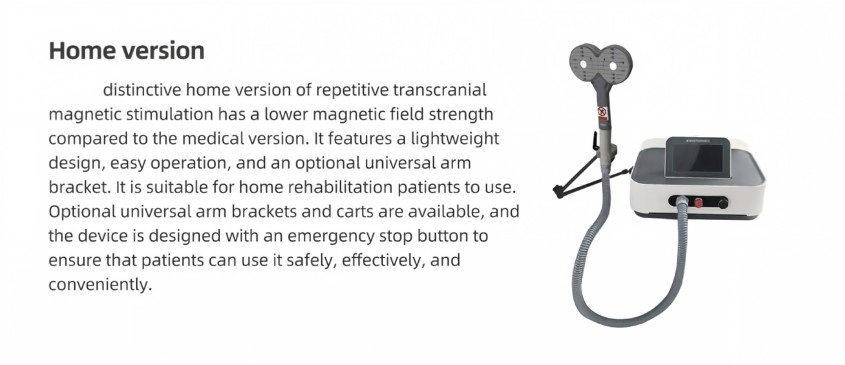

Transcrinial Magnetic Stimulator TMS FOR HOME USE

Introduction

Appearance and Composition

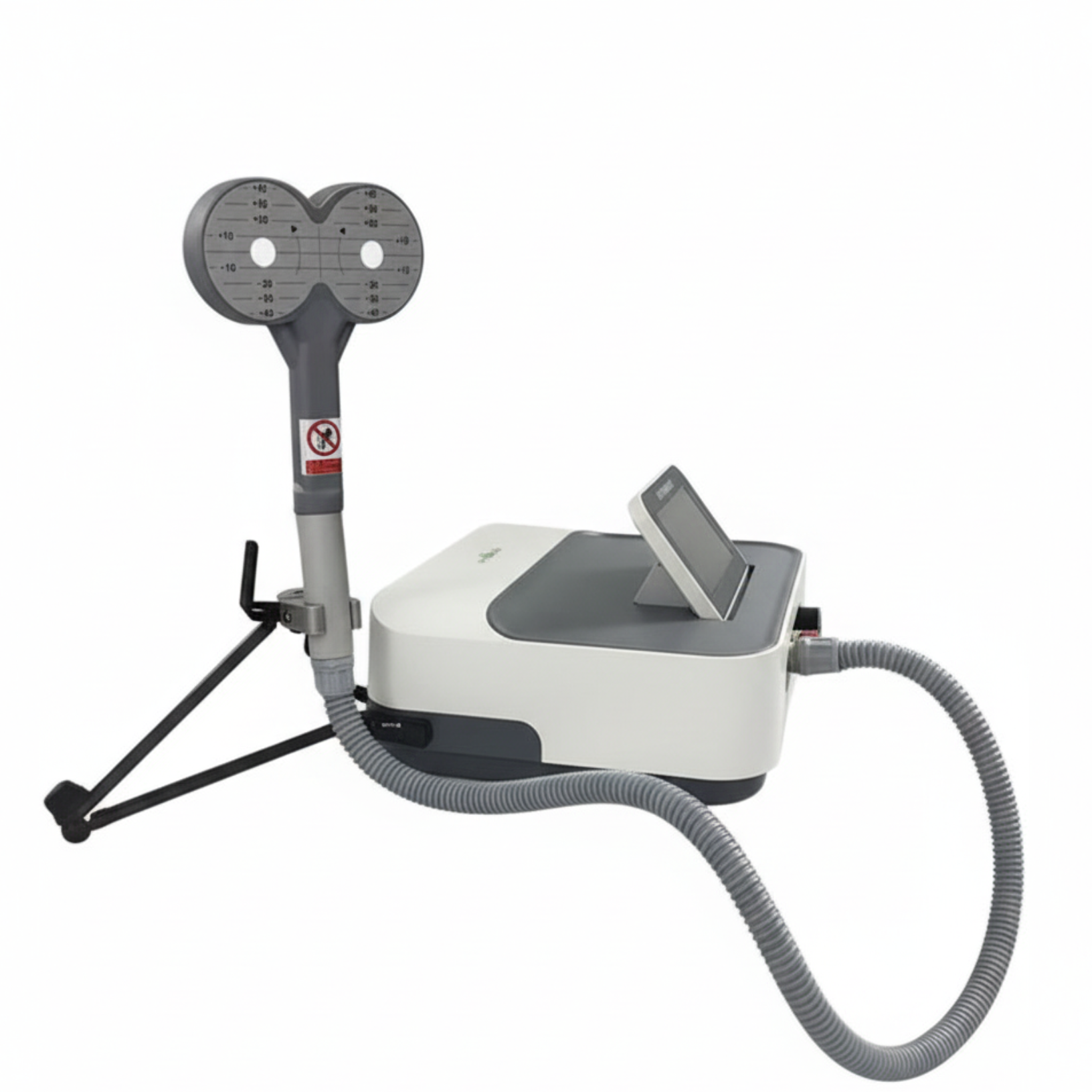

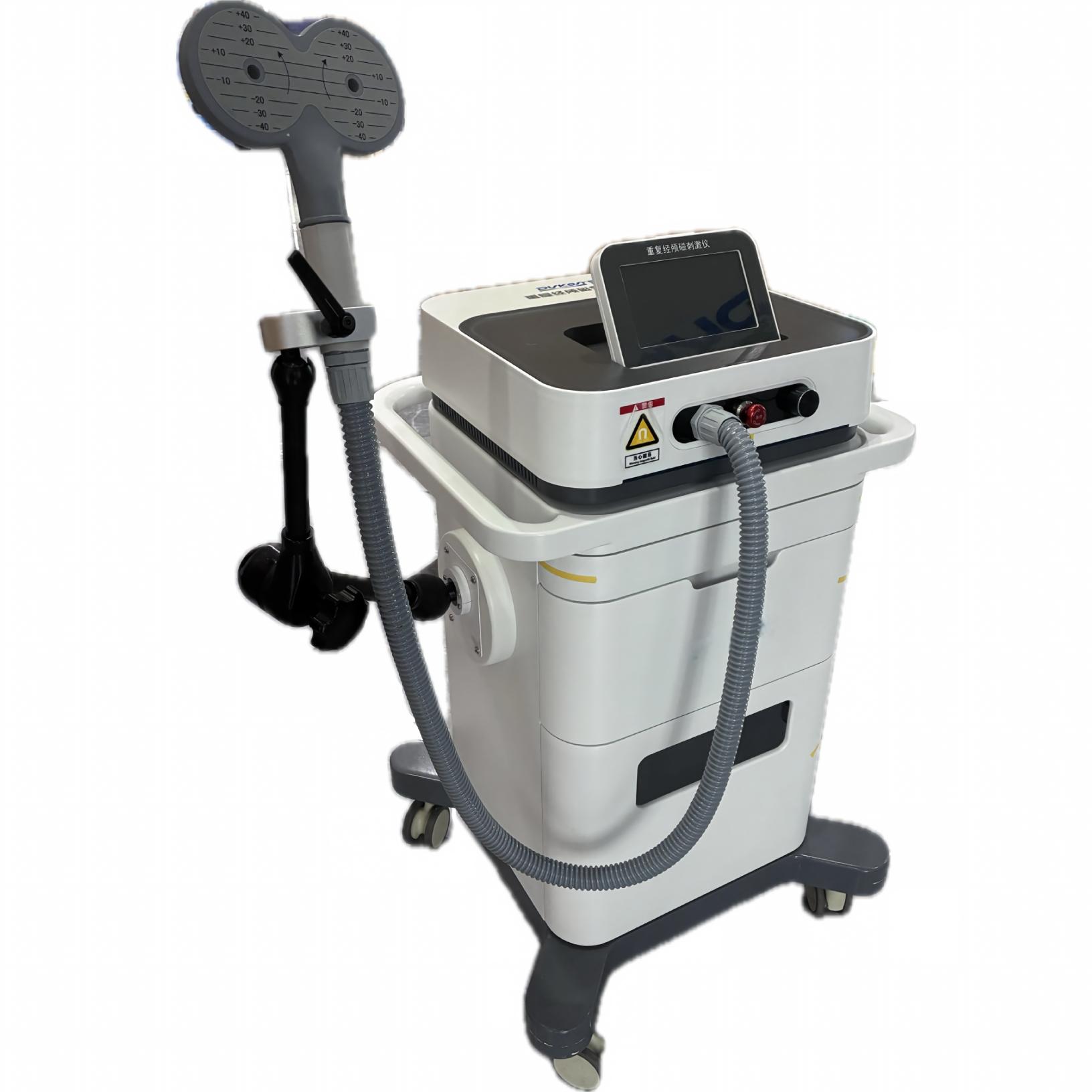

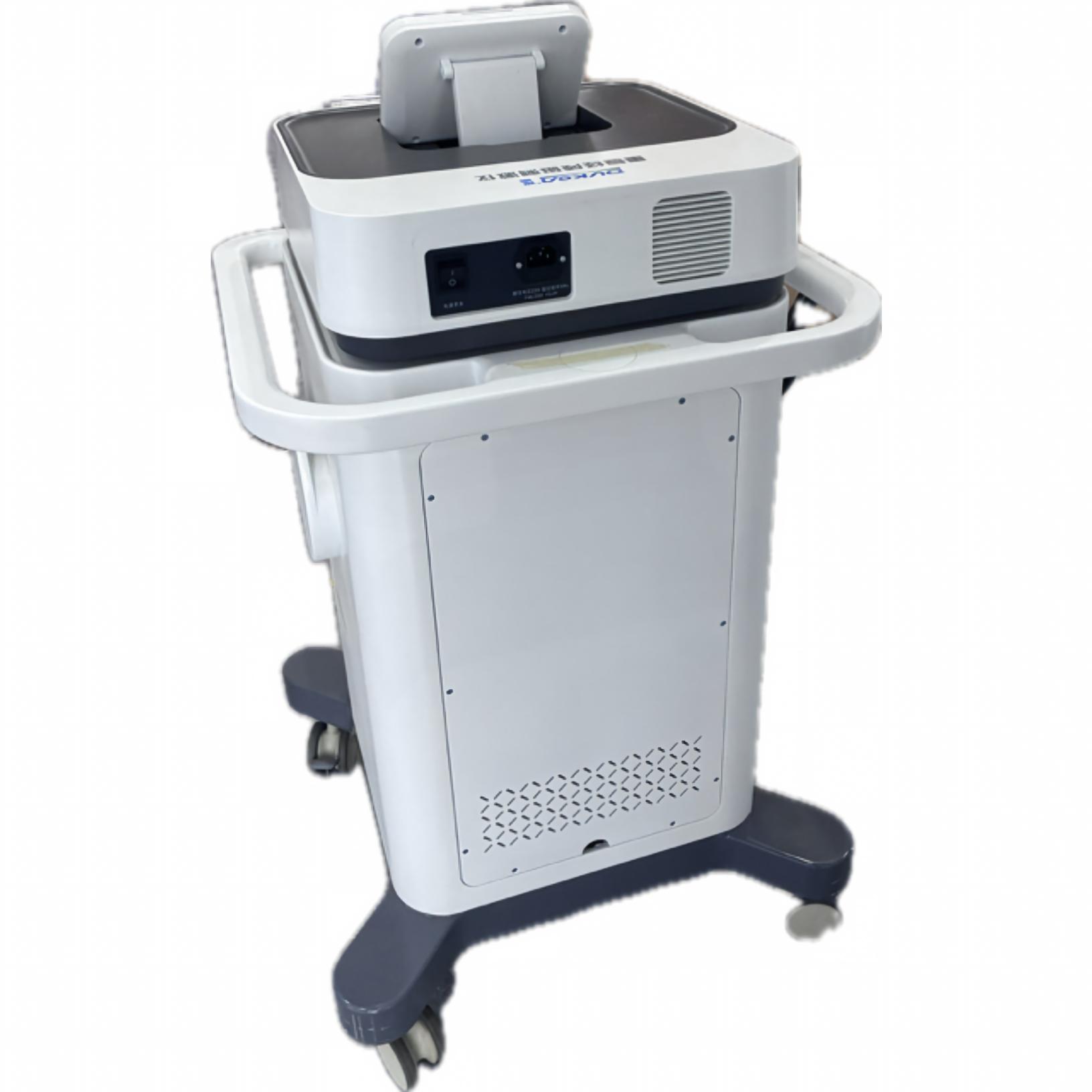

1.1 Appearance: Touch screen model on a cart

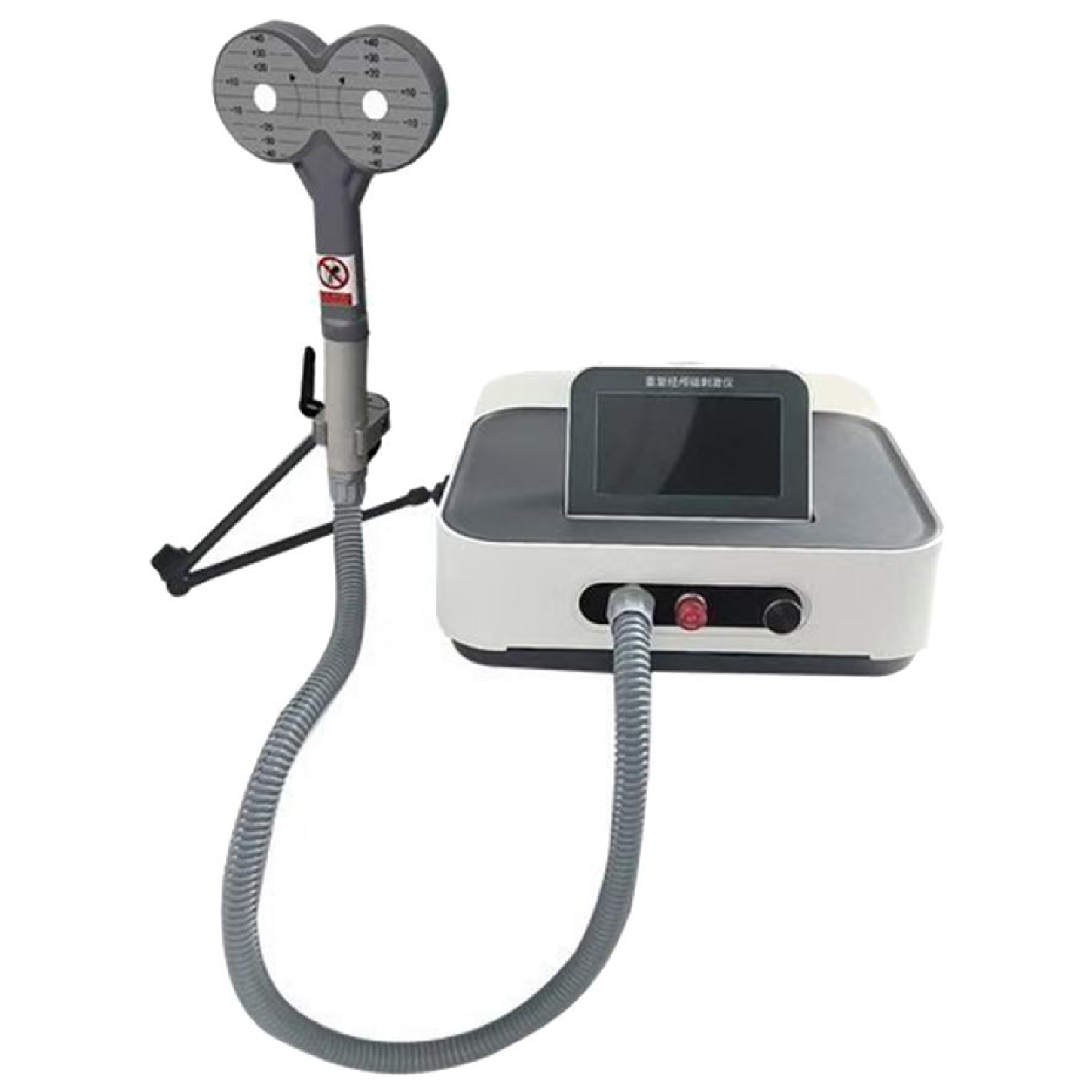

1.2 Composition: This product consists of a main unit, power cord, treatment  coils (standard 8-shaped coil, optional O-shaped coil), cart, and coil support.

Product Parameters

3.1. Product Dimensions: 42.5×41.5×13 cm

3.2. Equipment Classification: Class I, Type BF

3.3. Input Power: ≤600VA

3.4. Magnetic Field Strength: The magnetic stimulator has a magnetic field strength of 0 to 1 Tesla, with 100 levels,  and an error of ±20%.

3.5. Output Frequency The magnetic stimulator's output frequency ranges from 0 Hz to 30 Hz, with a step of  1 Hz, and an error of ±10%.

3.6. Pulse Width The pulse width of the magnetic stimulator is 350 microseconds, with an error of ± 10%.

3.7. Timing The magnetic stimulator's timing is adjustable from 0 to 120 minutes, with an error of  ±10%.

3.8. Magnetic Field Termination Function The magnetic stimulator has a function to manually stop the magnetic field output.

3.9. Protective Device When there is a fault with the stimulation coil, the stimulator should stop output and  display a fault prompt on the touch screen.

3.10. Appearance The exterior surface of the device should be clean, free from mechanical damage,  scratches, or other defects, and the markings on the device should be clearly visible. The switches, knobs, and touch screen of the device should be flexible and reliable,  and the fasteners should be secure with no looseness.

3.11. Strong Magnetic Mode a. Repeat Mode: The stimulation frequency is adjustable  from 1-30Hz, the number of stimuli from 1-20, the intermission time from 1-60s, and  the train number from 0-1000. b. Professional Mode: The stimulation frequency is  adjustable from 1-30Hz, the number of stimuli from 1-20, the repetition frequency  from 0-20Hz, the number of repetitions from 0-20, the intermission time from 1-60s,  and the train number from 0-1000. There is a certain mutual exclusivity in the  parameter adjustment of the professional mode.

3.12. Temperature Detection The device has a probe temperature detection function.  When the temperature is ≥30°C, the cooling system starts working. When the  temperature is ≤28°C, the cooling system stops working. When the temperature  reaches ≥35°C, the device should stop outputting and display an overheating  prompt on the touch screen.
