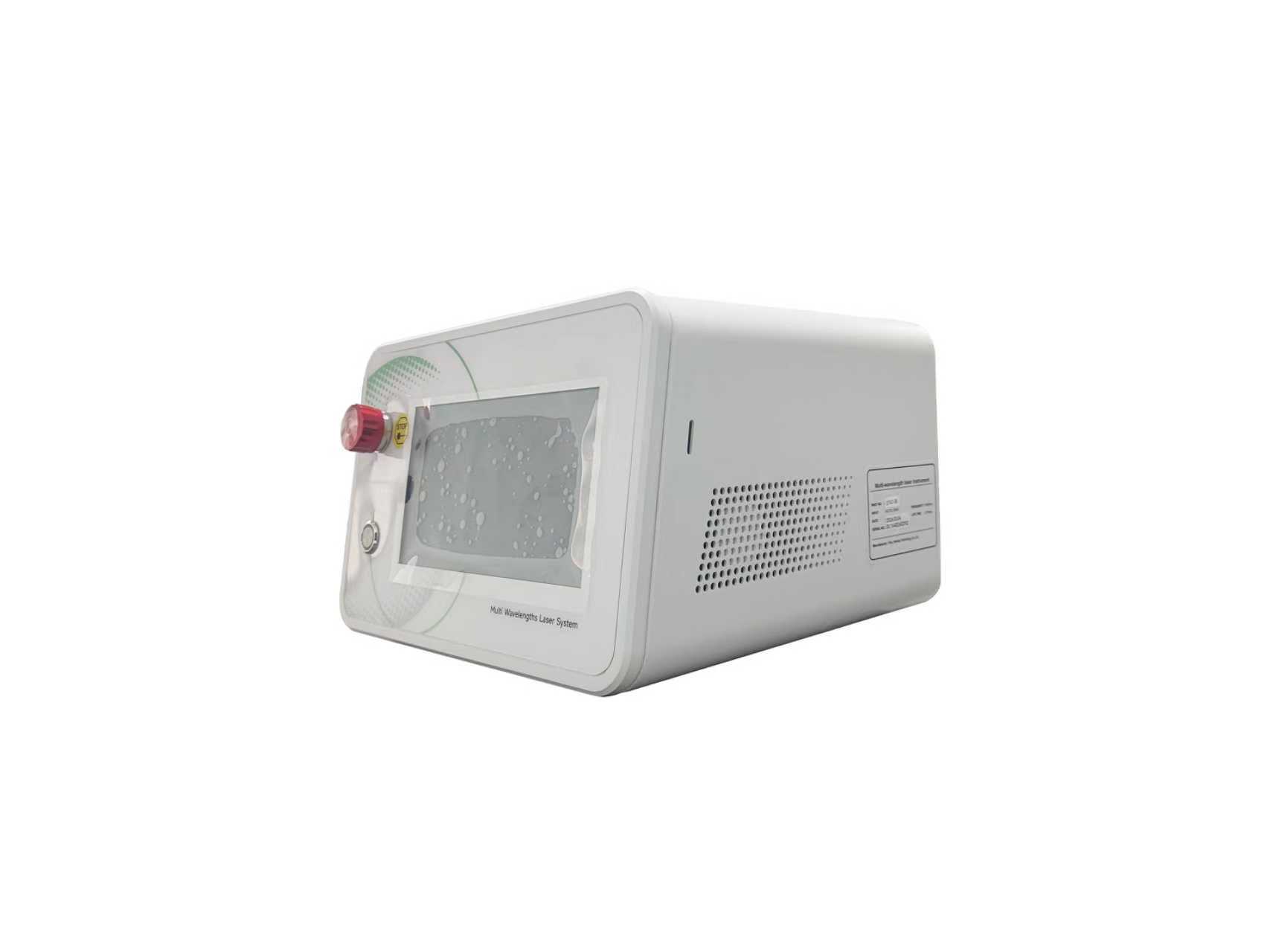

FOUR WAVELENGTH POWER LASER

FOUR WAVELENGTH POWER LASER

Feature

One Machine, Multiple Functions

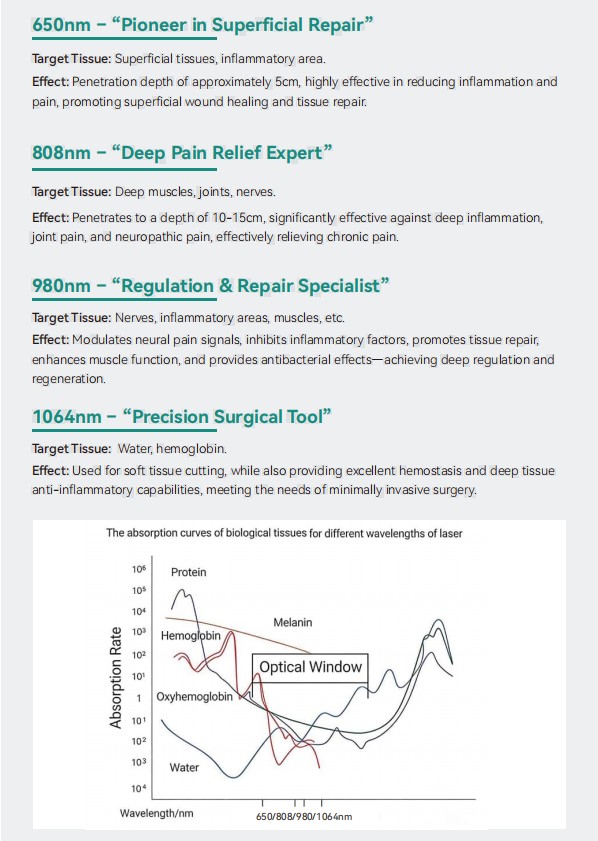

This system integrates multiple precise wavelengths, including 650nm, 808nm, 980nm, and 1064nm,

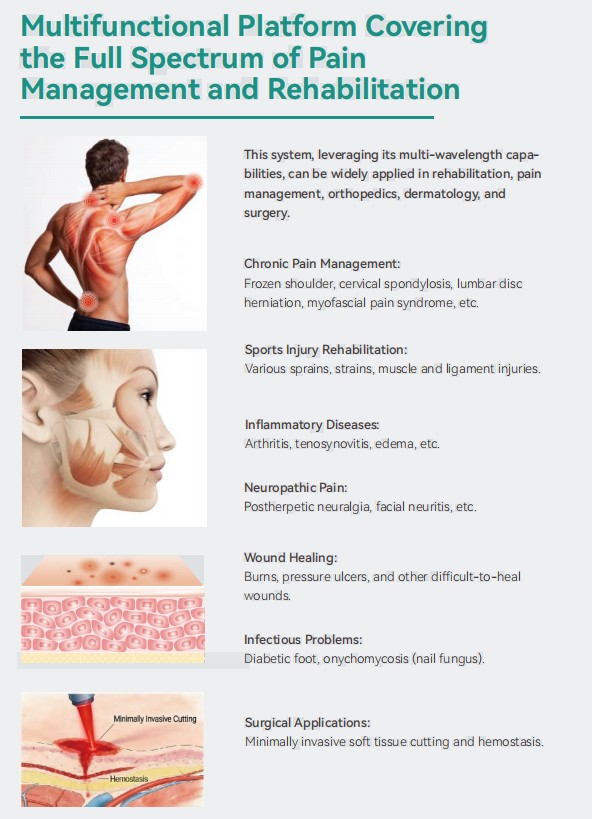

utilizing  diode laser technology to achieve a wide range of clinical applications spanning from superficial anti-inflammatory treatment to deep tissue repair and soft tissue cutting.


INQUIRE

Specification

Core Advantages:

  • Fully Integrated and Self-Developed, Superior  Performance:

From laser chips and modules to complete systems,  all components are independently researched,  developed, and manufactured,

making us one of the  few companies in China to achieve a complete  closed-loop industrial chain.

Perfect matching of key  components results in unparalleled system stability  (low failure rate) and output reliability.


  • Professional Design, Safe and Comfortable:

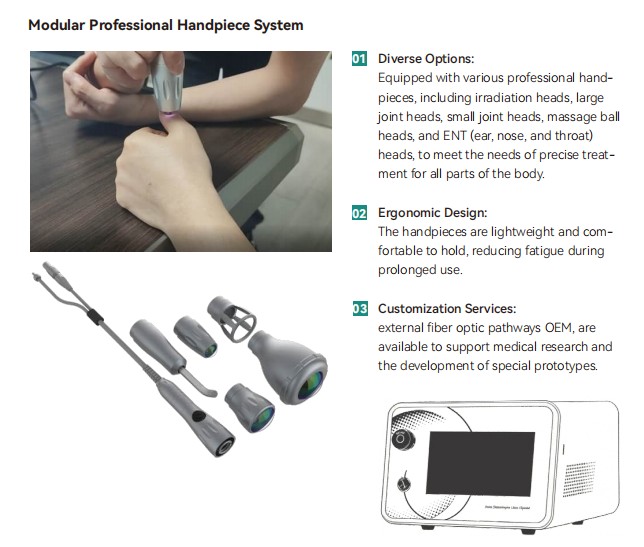

A full range of treatment heads is available (including  irradiation heads, large and small joint heads, massage ball heads, and ENT heads), suitable for different body parts.

The equipment operates with low  noise (approximately 40dB) and features intelligent  temperature control protection, ensuring a comfortable and safe treatment experience.


  • High Energy Output, Deep Therapeutic Effect:

Utilizing Class IV high-energy laser technology, the  penetration depth can reach up to 15cm, providing a  large treatment dose,

rapid onset of action, and  stronger effects on deep-seated lesions.


Specifications

Wavelength ( nm )6508089801064
Output Power ( W )0.581510
Aiming Beam650nm , ≤2mW

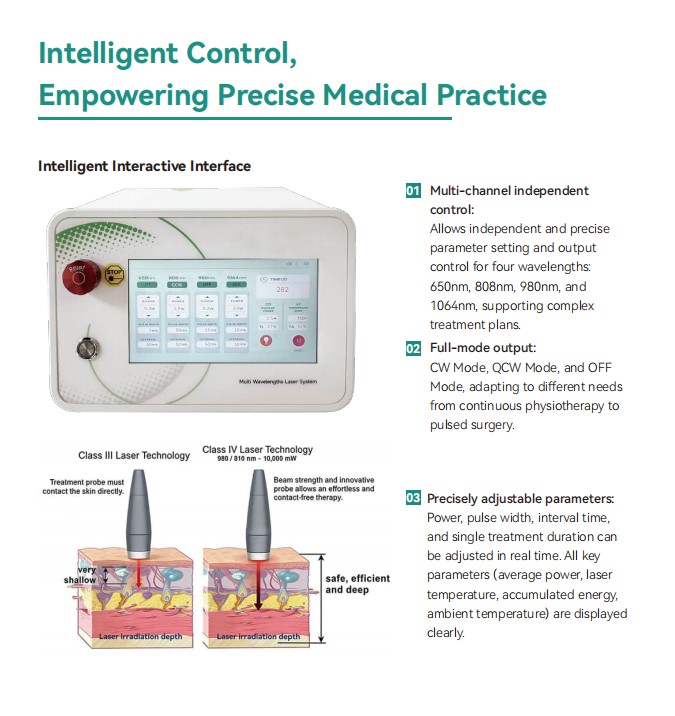

Working ModeCW/QCW
Repetition Rate ( kHz )25
Pulse Width ( ms )0.05-300
Output ModeFiber Coupled
Fiber TypeSMA905 , 400/600μm , 2m
Voltage Input110-220V , 50/60Hz


Details

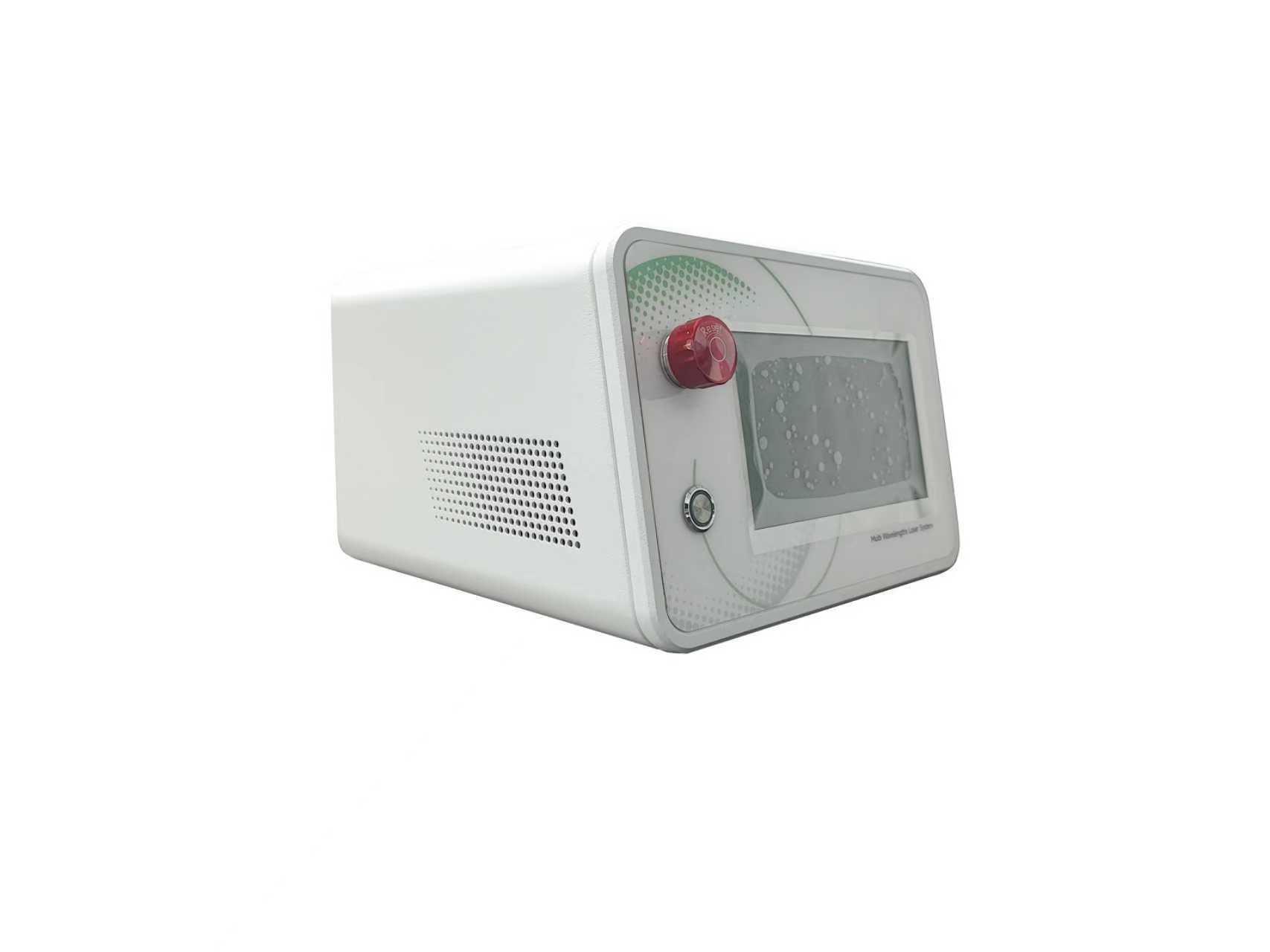

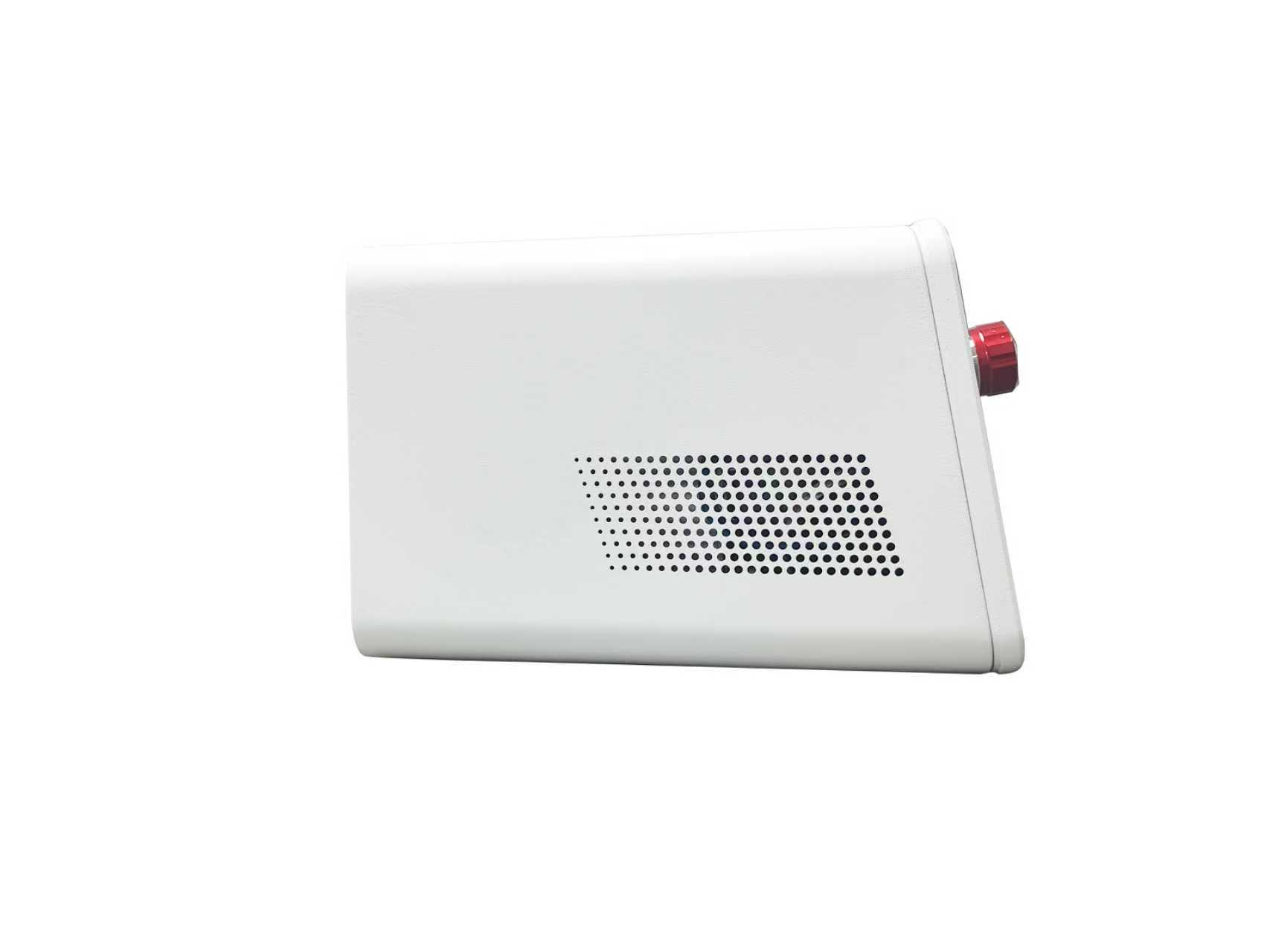

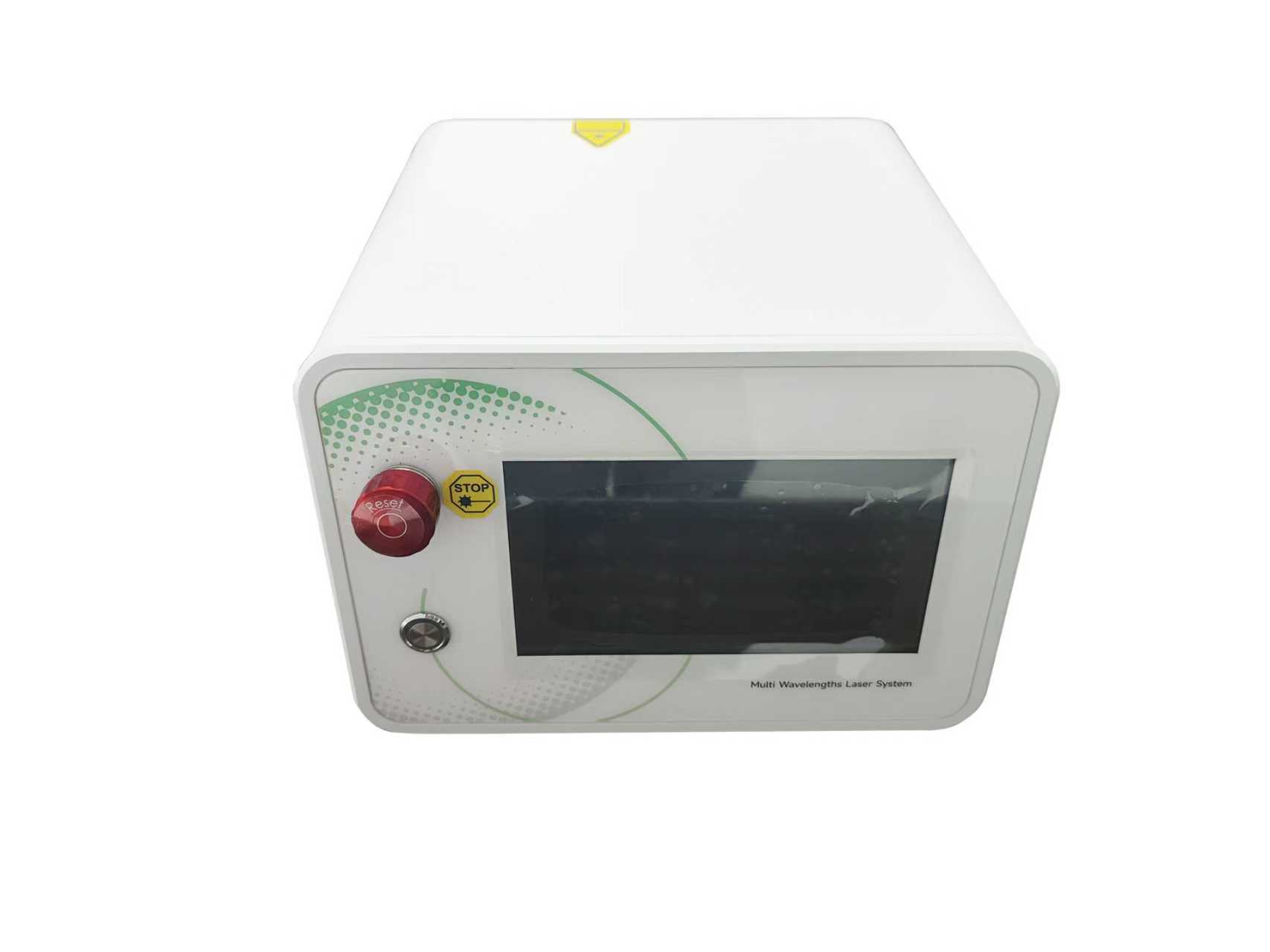

FOUR WAVELENGTH POWER LASER
